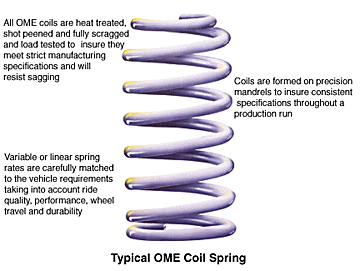

COIL SPRINGS
- Shot Peened - To reduce stress, which greatly enhances spring life.
- Fully Scragged - To eliminate spring sag.
- Variable & Constant Rate - Designs used to obtain optimum ride
comfort and load carrying capabilities.
- BHP quality spring steel.
| PART # |
DESCRIPTION |
PRICE |
| OME 751 |
Front Heavy Coil Spring |
$ 68.00 |
| OME 752 |
Rear 110 Light Coil Spring |
$ 68.00 |
| OME 755 |
Rear 110 Heavy Duty Coil Spring |
$ 68.00 |
| OME 760 |
Front Discovery/RR Coil Sprig to 45 LBS |
$ 68.00 |
| OME 761 |
Front Medium Coil Spring to 110 LBS |
$ 68.00 |
| OME 762 |
Rear Heavy Duty Coil Spring |
$ 68.00 |
| OME 763 |
Rear Very Heavy Duty Coil Spring |
$ 68.00 |
| OME 764 |
Rear Discovery/RR Medium Coil Spring |
$ 68.00 |
|

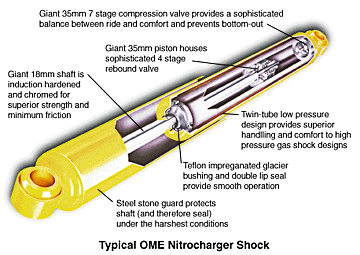

NITROCHARGER SHOCK ABSORBERS
- Giant 18mm Chromed Shaft - Indestructible for Australia’s rugged off
roading. Induction hardened then hard chromed to a superfine finish.
- Nitrogen Gas - The gas pressure keeps the oil cohesive under all
situations.
- Twin Tube Design - New 33% thicker outer tube insures that rocks do not
damage internal operating components. This design also allows for a greater volume of oil
which keeps shock cooler.
- 35mm Seven Stage Compression Valve - Delivers all the subtleties of
compression rates for the best ride and handling.
- Check Valve Seal - The latest in seal technology, this shaft seal
significantly improves gas retention while offering excellent longevity.
- Glacier Bush - A Teflon coated rod guide bush - significantly reduces
heat build up in the rode guide area, developed from the Emu’s off road racing
program.
- Giant 35mm Teflon Banded Piston - A new four stage coil sprung rebound
valve system to control vehicle bounce.
- Supplementary Welds - On all mounting eyes and pins for maximum shock
absorber mount strength.
- Stoneguard - Protects oil seal and piston rod against stone and dirt
damage.
- Warranty - Backed by ARB's 2 year no compromise warranty.
NITROCHARGER SHOCK ABSORBERS
|
| PART # |
DESCRIPTION |
PRICE |
| N27 |
Rear Disco/D-90/Range Rover |
$ 74.00 |
| N44 |
Rear Heavy Load Disco/RR |
$ 74.00 |
| N45F |
Front Land Rover |
$ 74.00 |
| N46 |
Rear Land Rover |
$ 74.00 |
|
STEERING DAMPER |
| PART # |
DESCRIPTION |
PRICE |
| OMESD11 |
Steering Damper Disco/RR |
$ 59.00 |
| OMESD32 |
Steering Damper D-90/110 |
$ 59.00 |
|
LTR SHOCKS |
| PART # |
DESCRIPTION |
PRICE |
| LTR04FR |
Front Right Discovery |
$ 225.00 |
| LTR04FL |
Front Left Discovery |
$ 225.00 |
| LTR04R |
Rear Discovery |
$ 225.00 |
| LTR05F |
Front Defender |
$ 225.00 |
| LTR05R |
Rear Defender |
$ 225.00 |
|
CASTER KIT * |
| PART # |
DESCRIPTION |
PRICE |
| CALR1 |
Caster Kit Defender 90/110 |
$ 62.00 |
| CALR2 |
Caster Kit Late RR & Discovery |
$ 86.00 |
|
| * Caster kit will increase caster angle by 2º. Check manufacturer’s
specifications to determine if caster kit is required. CALR1 suites 90/110 & CALR2
suits RR & Discovery. Generally, this kit is necessary if the front suspension is
changed to a heavy suspension (greater lift). |
|
